🎯 What is Oracle Data Guard?
Simple Definition:
Oracle Data Guard is Oracle's disaster recovery and high availability solution that maintains one or more synchronized copies (standby databases) of a production database (primary database).Think of it like this:
Primary Database = Your main production database where all work happens
Standby Database = An exact copy that's continuously updated
Data Guard = The technology that keeps them synchronized
Technical Definition:
Oracle Data Guard is a comprehensive framework that provides:
1. Physical replication of data from primary to standby
2. Automated failover capabilities
3. Role transitions between primary and standby
4. Data protection against failures, disasters, errors, and corruption
🏗️ Architecture Overview
Let me explain with a real-world analogy:
The Bank Branch Analogy:
Imagine you have a bank:
Primary Branch (Primary Database):
- Main branch in Mumbai where all transactions happen
- Customers deposit, withdraw, transfer money
- Every transaction is recorded in the main ledger
- Second branch in Delhi with an identical setup
- Receives copies of all transactions from Mumbai in real-time
- Has the exact same ledger, just slightly behind
- If Mumbai branch burns down, Delhi branch can immediately take over
- Continuously carries transaction records from Mumbai to Delhi
- Uses special secure vehicles (network)
- Ensures no transaction is lost

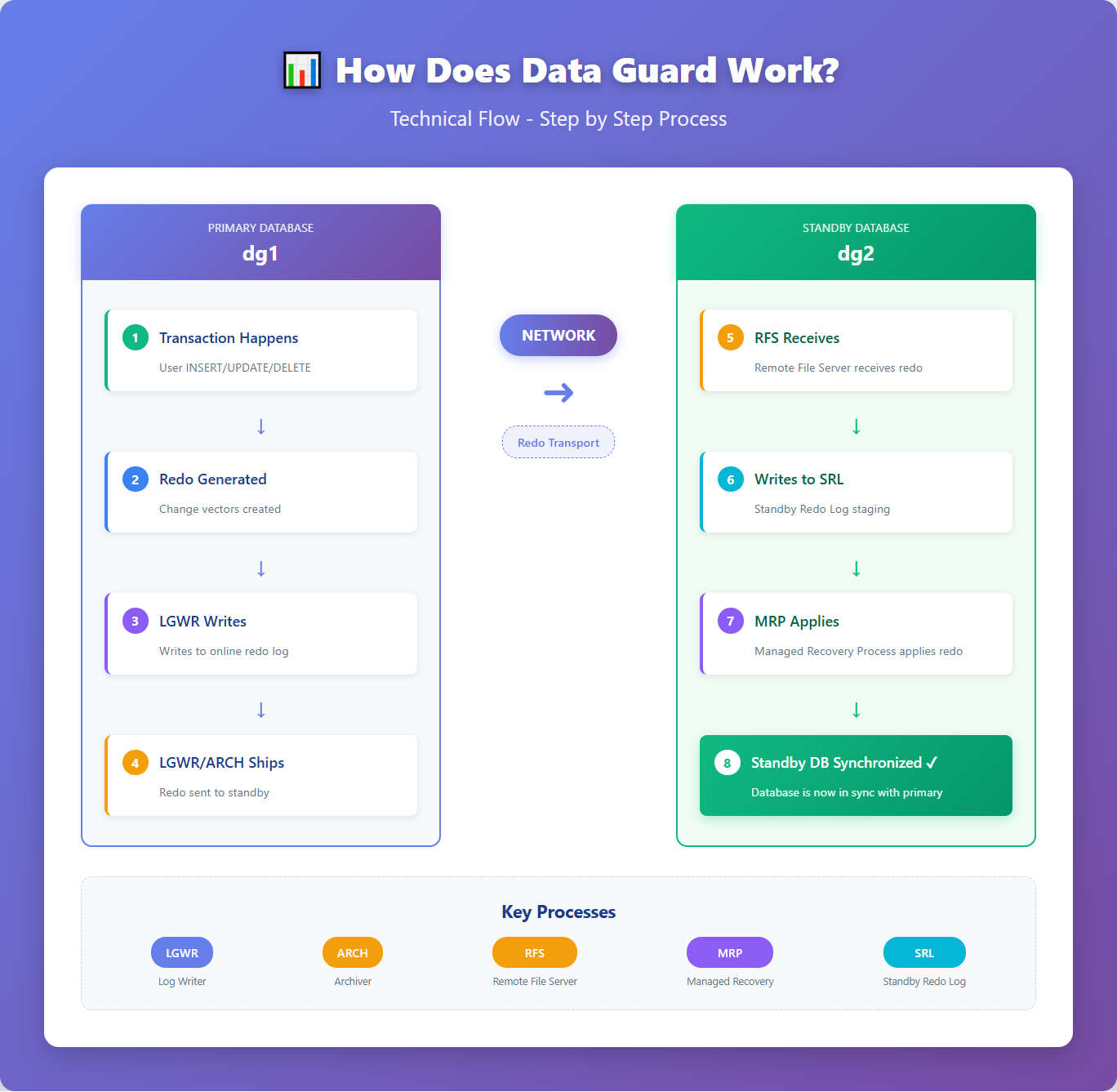

Explanation of Each Step:
On Primary:
1. Transaction Happens: User inserts/updates/deletes dataINSERT INTO customers VALUES (1, 'John Doe');2. Redo Generated :Oracle generates redo records (change vectors)
- Think of redo as a "recipe" to recreate the change
- Contains: "Add row with ID=1, name='John Doe' to customers table"
3. LGWR Writes: Log Writer process writes to online redo log files
- LGWR is like a journalist recording everything that happens
4. Redo Shipped : LGWR (or ARCH) sends redo to standby
- Like sending a copy of the journal to the backup location
- Can be SYNC (wait for confirmation) or ASYNC (fire and forget)
On Standby:
5. RFS Receives: Remote File Server process receives redo data- Like a mailroom receiving packages
- Staging area before applying changes
- Reads the "recipe" and recreates the exact same changes
- Makes standby identical to primary
🎯 Why Do We Need Data Guard?
1. Disaster Recovery (Primary Reason)Scenario: Datacenter Fire
Without Data Guard: 9:00 AM - Fire destroys primary datacenterFinancial Impact:
9:30 AM - DBA realizes database is gone
10:00 AM - Start restore from last night's backup
2:00 PM - Restore completes
3:00 PM - Apply archive logs (if available)
4:00 PM - Database back online
Result: 7 hours downtime + possible data loss
With Data Guard:
9:00 AM - Fire destroys primary datacenter
9:05 AM - DBA performs failover to standby
9:10 AM - Standby is now primary, accepting transactions
Result: 10 minutes downtime + ZERO data loss
- E-commerce site losing ₹1 crore/hour during outage
- Without DG: ₹7 crores loss
- With DG: ₹17 lakhs loss
- Savings: ₹5.83 crores!
2. High Availability
Scenario: Operating System Patching
Without Data Guard:
Friday 11 PM - Shutdown database
Friday 11:30 PM - Apply OS patches
Saturday 1:30 AM - Reboot server
Saturday 2:00 AM - Start database
Saturday 2:30 AM - Database back online
Downtime: 3.5 hours (during peak hours for global users)
With Data Guard:
Step 1: Patch standby server (no impact to production)
Step 2: Switchover to standby (5 minutes downtime)
Step 3: Patch old primary (now standby)
Step 4: Switchover back if needed (5 minutes)
Total Downtime: 10 minutes (scheduled, controlled)
3. Data Protection
Protection Against:
a) User Errors:
-- Accidental deletion
DELETE FROM orders WHERE status = 'PENDING';
-- Oops! Forgot WHERE clause, deleted ALL orders!- Use standby for point-in-time recovery
- Restore just the affected table
- Minimal impact
- Disk controller failure
- SAN corruption
- Memory errors causing data corruption
- Database bugs
- Application bugs corrupting data
- OS issues

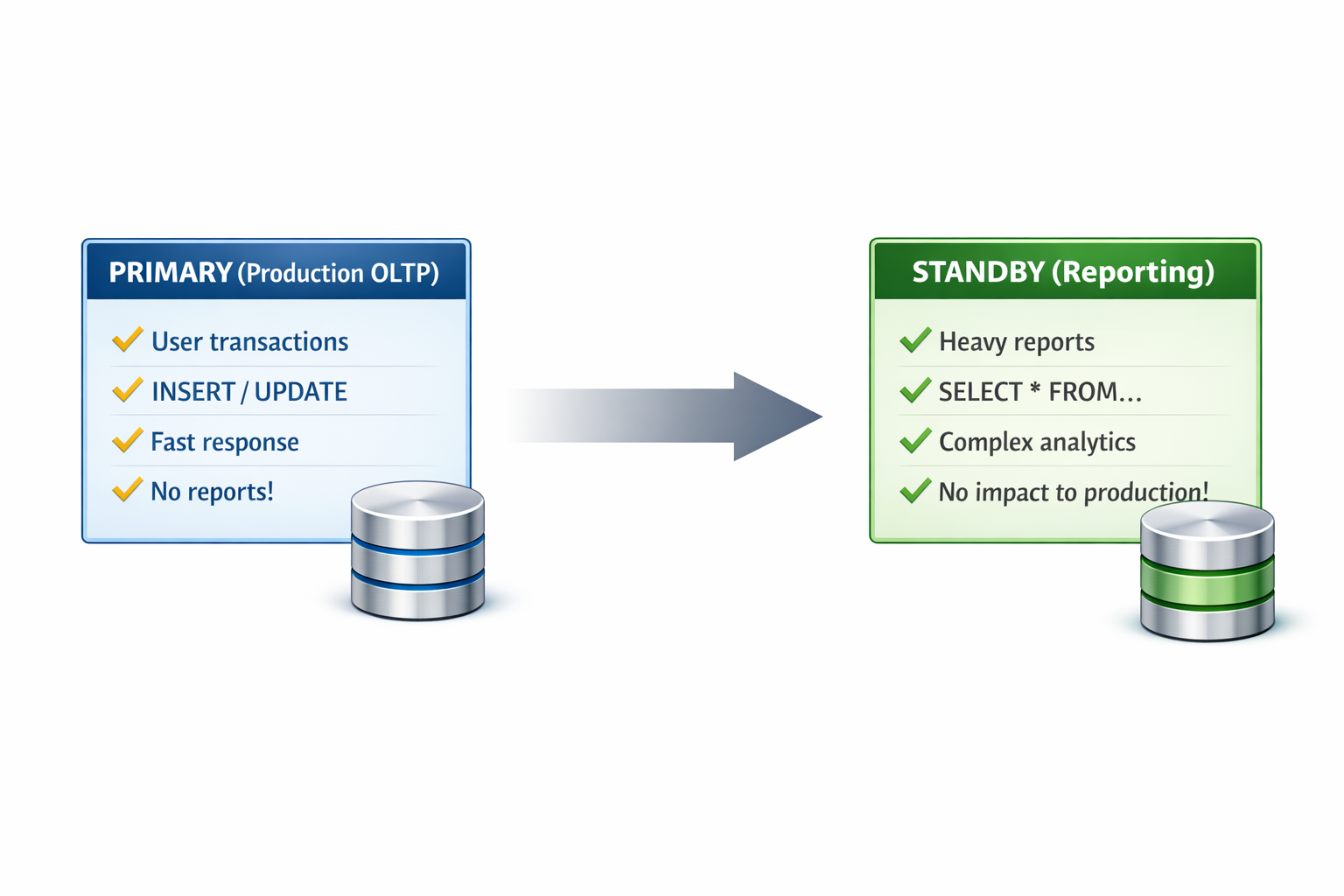

Use standby for READ-ONLY workloads:
Real Example:
- Banking app: Customers doing transactions on primary
- Management running quarterly reports on standby
- Reports don't slow down customer transactions!
💼 Real-World Business Cases
Case 1: E-Commerce Company (Amazon-like)Business Requirements:
- Can't afford ANY downtime during Diwali sale
- Losing ₹50 lakhs per minute of downtime
- Customers expect 24/7 availability
- Need to patch systems monthly
Data Guard Solution:
Primary: Mumbai datacenter
Standby 1: Bangalore (disaster recovery)
Standby 2: Delhi (reporting)
Benefits:
Zero-downtime patching using switchover
Instant failover if Mumbai fails
Reports run on Delhi without impacting sales
ROI: Prevented ₹20 crore loss in one year
Case 2: Banking Application
Business Requirements:
- RBI compliance: Zero data loss tolerance
- 99.99% availability SLA
- Daily regulatory reporting
- Branches across India
- Primary: Chennai (core banking)
- Standby: Mumbai (DR + reporting)
- Protection Mode: Maximum Availability (zero data loss)
- Passed RBI audit with zero data loss guarantee
- Branch reports run on standby (no production impact)
- Survived Chennai floods with 5-minute failover
- Avoided RBI penalties + maintained customer trust
